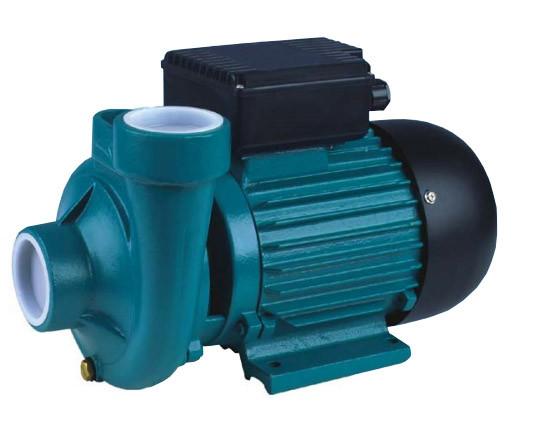

Electric Centrifugal Sewage Water Pump 2HP for water transferring

Brand Name : ZOZHI

Model Number : 2DKM-20-2

Certification : CE/SGS/ISO

Place of Origin : China

MOQ : 1pc

Price : negotiated

Payment Terms : T/T, L/C

Supply Ability : 30000pcs/month

Delivery Time : 25 working days after received your payment

Packaging Details : Packed in cartons , overall size:380x235x250mm/pc, N.W.: 25kgs

Products Name : Sewage Water Pump

Application : Boosting

Output : 2.0HP / 15KW

Flow Max : 540 L/Min

Head Max : 23M

Usage : waste water

Inlet/Outlet : 2"x2"

Feature : Long life

Contact Now


Sewage pump Electric Centrifugal Water Pump DKM Series 2HP for sewage water transferring


Sewage Water Pump PUMP Centrifugal

Pump Body: Cast Iron
Impeller: Brass / Cast Iron
Mechanical Seal: Carbon / Ceramic / Stainless steel




APPLICATIONS

a) Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply, and drainage, pipeline boosting, etc.
b) Household sewage water supply
c) Boost system
d) Farm irrigation
e) Circulation system



TECHNICAL DATA

ModelOutputAR.P.M.Q.MaxH.MaxS.HeadPipe DiaLxWxHN.W.
HP / KW1~220V(l/min)(m)(M)(mm)(Kg)
1.5DKM-160.75 / 0.55428501801691.5"x1.5"320x180x2109.9
1.5DKM-201 / 0.754.828502402091.5"x1.5"320x180x21012
2DKM-161.5 / 1.16.228504802192"x2"380x235x25023
2DKM-202.0 / 1.59.428505402392"x2"380x235x25025

Other voltages and frequencies available on request

Electric Centrifugal Sewage Water Pump 2HP for water transferring


Sewage Water Pump STRUCTURAL CHARACTERISTICS

Main SpecificationStandardOptional
Transmission mediumClean Water, sewage water, and fluids
Pump bodyCast Iron
ImpellerBrass with centrifugal radial flow
Motor housingAluminum
Stator&Rotor1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front coverCast Iron
BearingChinese Best Quality BearingNSK,SKF, or on request
Mechanical sealGraphene/CeramicSilicon Carbon
ShaftCarbon SteelStainless Steel
InsulationClass BClass F
ProtectionIP44IP54
Voltage220-240V Single PhaseOn Request
Frequency50HZ60HZ
Thermal protectionNoYes
Automatic Pressure Control SystemNoYes
Cooling TypeExternal Ventilation
Max. Suction lift9M
Max. Fluid Temperature+60℃
Max. Environment Temperature+40℃
InstallationHorizontal
Connect TypeThread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



ADVANTAGE

100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more precise
Thermal protector
It has advantages of high efficiency, saving energy, low noise, reliable performance.



OUR SERVICE
1). We are very glad that the customer gives us some suggestions for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM



FAQ

1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.

2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators since 2006.

3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!

4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.

5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.

6). Q: How about the warranty?
A: 1 year from shipped on board date.
